Supermicro SuperServer SYS-5019C-MR 1U Intel Xeon E 6-Core 128GB Server
£1,129.50
Shop with confidence! Valknut Automation LTD is an authorized Supermicro Partner Reseller.
Overview

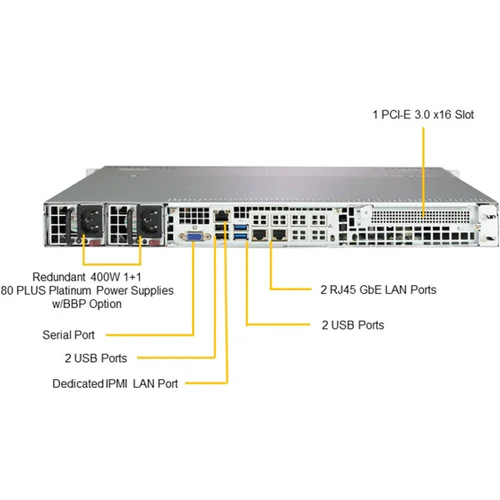

Supermicro SuperServer SYS-5019C-MR from the 1U series supports a single Socket H4 LGA-1151 processor including Xeon Core i3 Celeron or Pentium with up to 128GB DDR4-2666 memory across 4 slots. It features Intel C246 chipset 4 hot swap 3.5 inch bays RAID support Gigabit Ethernet and dual 400W power supplies for reliable rackmount performance.
Specifications
Model Number:SYS-5019C-MR
Brand: Supermicro
Alt Part Number(s):SYS-5019C-MR
Product Type: Server
Technical Description
Brand: Supermicro
Model:SYS-5019C-MR
Number of Processors Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Xeon; Core i3; Celeron; Pentium
64-bit Processing: Yes
Chipset Manufacturer: Intel
Chipset Model: C246
Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-2666/PC4-21300
Total Number of Memory Slots: 4
Controller Type: Serial ATA/600
RAID Supported: Yes
Ethernet Technology: Gigabit Ethernet
Number of Total Expansion Bays: 4
Number of 3.5″ Bays: 4
Total Number of Expansion Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 4
Number of SATA Interfaces: 6
Input Voltage: 120 V AC; 230 V AC
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 400 W
Color Family: Black
Product Color: Black
Form Factor: 1U Rackmount
Additional information
| Form Factor | 2U Rack |
|---|---|
| CPU Cores | |
| Processor | 2 |
| Memory Capacity | 4 TB |
| Memory Speed | 3200/2933 MHz |
| Memory Type | DDR4 RDIMM/LRDIMM/LR-DIMM 3DS |
| Drive Bays | 12 x 2.5" NVMe/SATA/SAS |
| Expansion Slots | 3 PCIe 4.0 slots |
| Network Connectivity | Four 1 Gb LAN or two 10 Gb LAN (flexible onboard LAN-module design) |
| Power Supply | Redundant 1600W 80 Plus Titanium and Platinum |
| Management | ASUS ASMB10-iKVM with ASPEED AST2600 controller |
